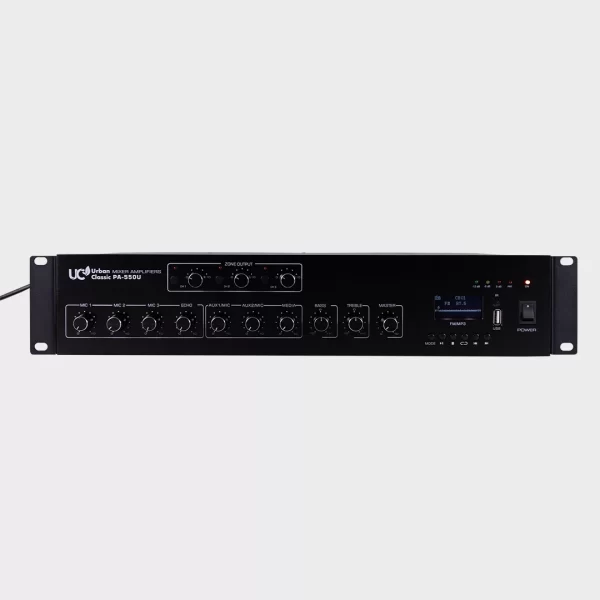

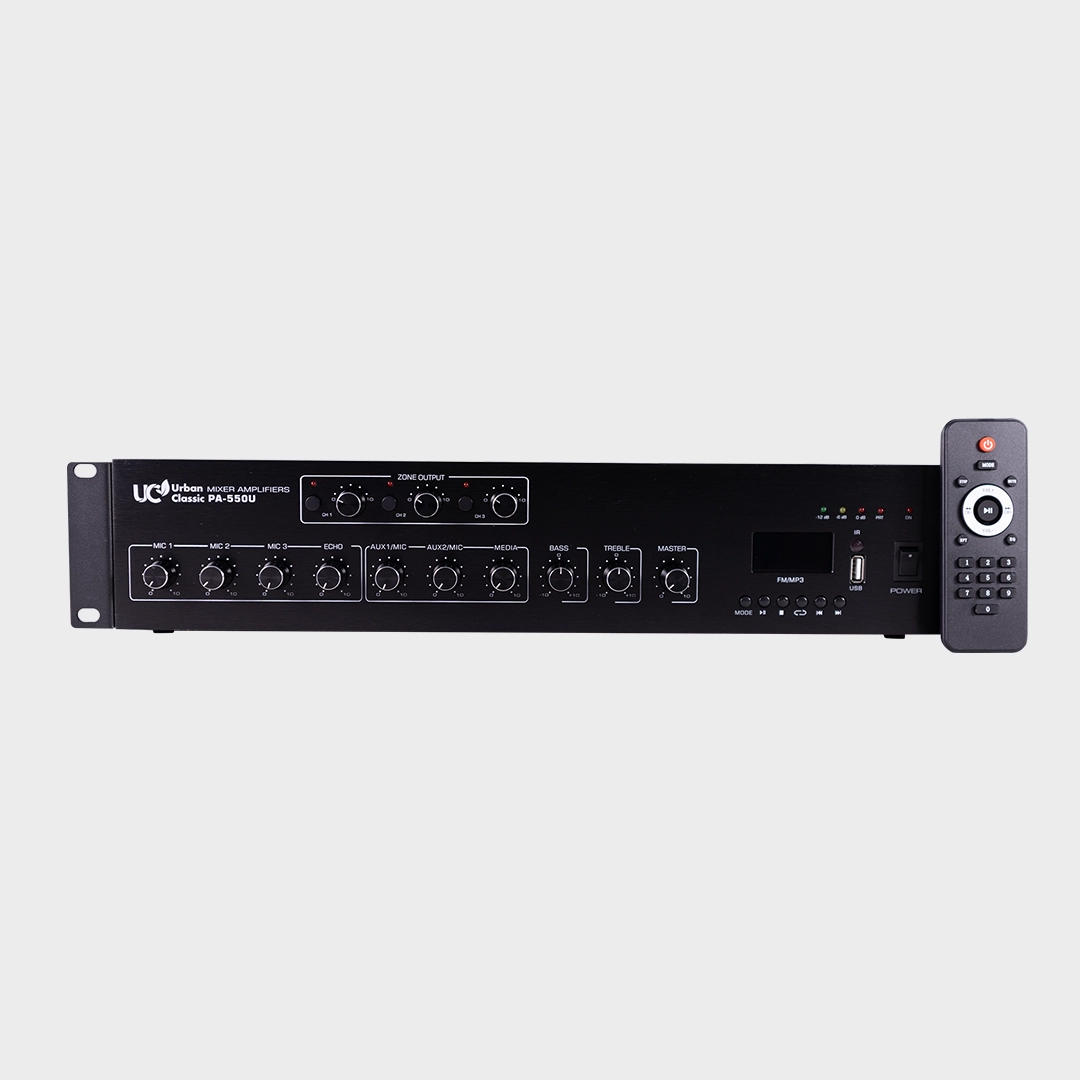

The Urban Classic PA–550 Z3 Mixing Zone Amplifier delivers powerful 550W sound with multi–zone control, making it ideal for hotels, malls, and large commercial spaces. With multiple input options and seamless playback, it ensures crystal–clear audio across different areas with flexible zone management.
Key Features :
Key Features :
- 550W RMS output with Low Impedance (4–16Ω) & Constant Voltage (70/100V) support
- 3 zones with individual volume control (100V) for precise audio distribution
- 3 Mic inputs & 2 Line/Aux inputs for versatile connectivity
- USB (MP3, WAV) with display, FM & Bluetooth playback options
- Compact design – Table–top or Rack–mountable
- Durable, professional-grade build for 24/7 operation
FEATURES
SPECIFICATIONS
FEATURES
| Dimensions (WxHxD): | 17.3″ × 2.75″ × 14″ | |
|---|---|---|
|
Weight: |
15.4kg |
|
|
Colour: |
Black |
|
SPECIFICATIONS
Power & Performance
Inputs
Outputs
Controls & Protection
- RMS / AES Power Handling: 4–16Ω / 70/100V: 550W
- Frequency Response: 40Hz – 18KHz
- Signal-to-Noise Ratio: > 90 dB
- Technology: Class A/B Amplification
- Power Transformer: 220 ~ 230 V AC / 50 ~ 60Hz
Inputs
- USB: Yes (Supports MP3, WAV – with Display)
- FM / Bluetooth: Yes (Internal Antenna)
- Unbalanced Mic Input: 3 × P38
- Unbalanced Line/Aux Input: 2 × RCA
- Zone Control: 3 zones with individual volume control (100V)

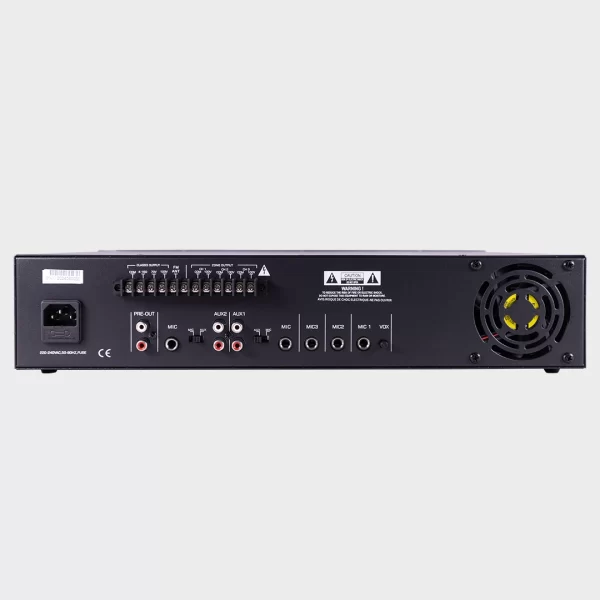

Outputs
- 4Ω ~ 16Ω: Terminal Screw Type
- 70V / 100V: Terminal Screw Type
- Monitor Out: Yes
- Zone Control: 3 zones
Controls & Protection
- Efficiency: > 85%
- Protection: DC Short Circuit
- Operating Temperature: 0° ~ 40°C @ 95% Humidity
