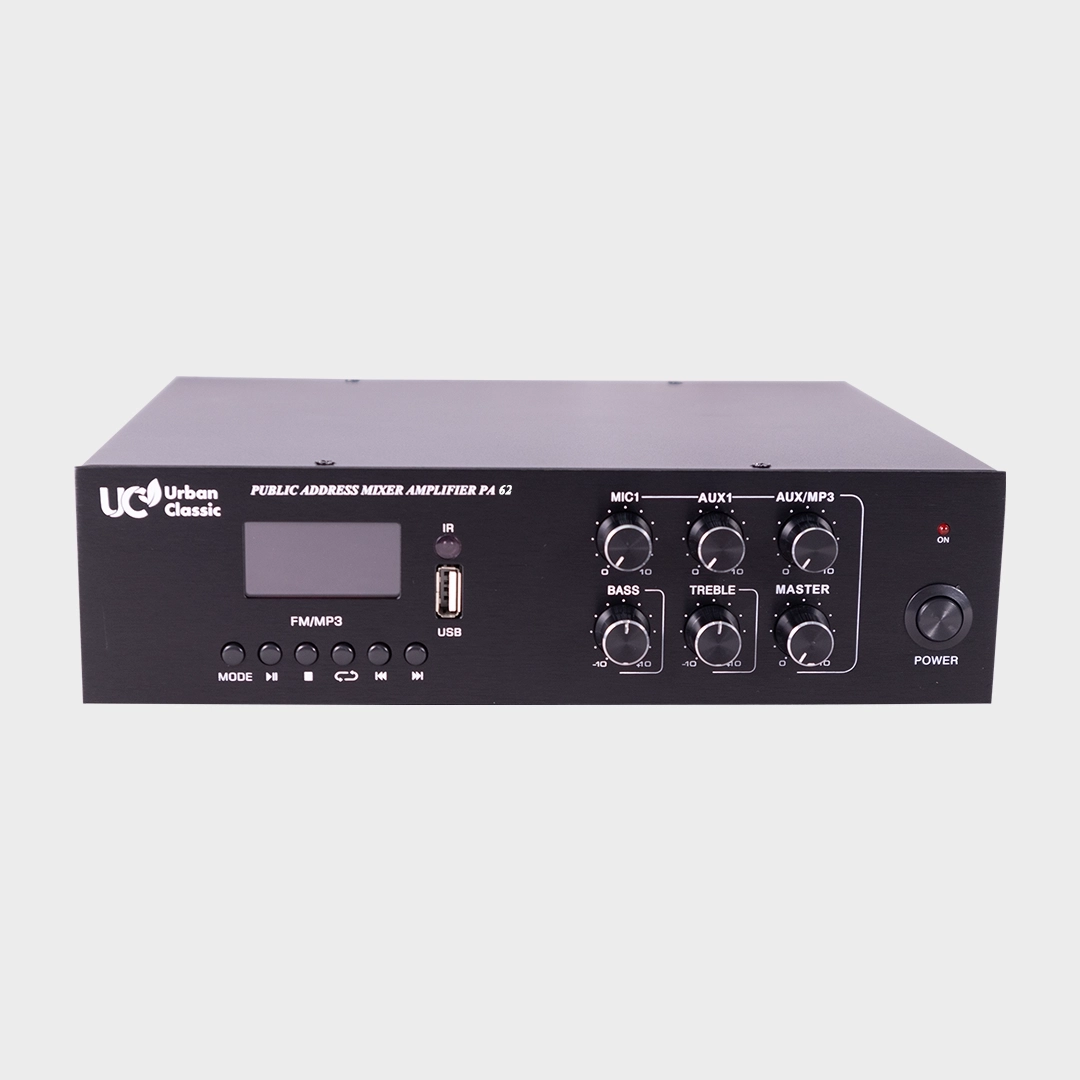

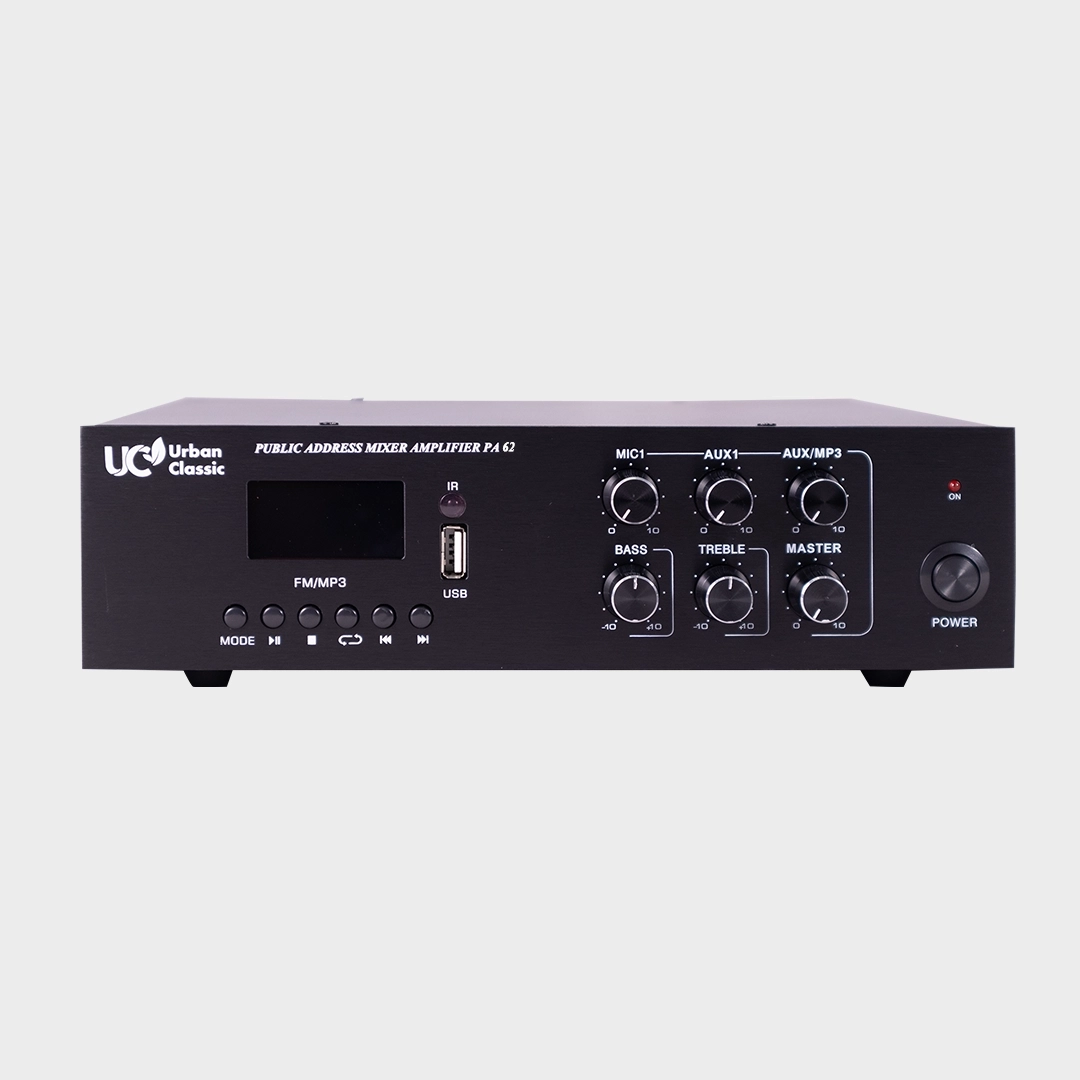

The Urban Classic PA–62 Commercial Mixing Amplifier delivers 60W of powerful sound for Low Impedance (4–16Ω) and 100V speaker systems. This professional 60W commercial audio amplifier is ideal for conference rooms, retail stores, and hospitality spaces, ensuring clear music playback and reliable announcements.
Key Features:
Key Features:
- 60W RMS output with Low Impedance (4–16Ω) & Constant Voltage (100V) support
- 2 Mic inputs & 1 Line (Aux) input for flexible connectivity
- USB, FM & Bluetooth playback options
- Compact design – Table–top or Rack–mountable
FEATURES
SPECIFICATIONS
FEATURES
| Dimensions (WxHxD): | 10″ x 3″ x 10″ | |
|---|---|---|
|
Weight: |
3.9 kg |
|
|
Colour: |
Black |
|
SPECIFICATIONS
Power & Performance
Inputs
Outputs
Controls & Protection
- RMS / AES Power Handling: 4–16Ω / 70/100V: 60W
- Frequency Response: 40Hz – 18KHz
- Signal-to-Noise Ratio: > 90 dB
- Technology: Class A/B Amplification
- Power Transformer: 220 ~ 230 V AC / 50 ~ 60Hz
Inputs
- USB: Yes (Supports MP3, WAV – with Display)
- FM / Bluetooth: Yes (Internal Antenna)
- Unbalanced Mic Input: 2 × P38
- Unbalanced Line Input: 1 × RCA (Aux)

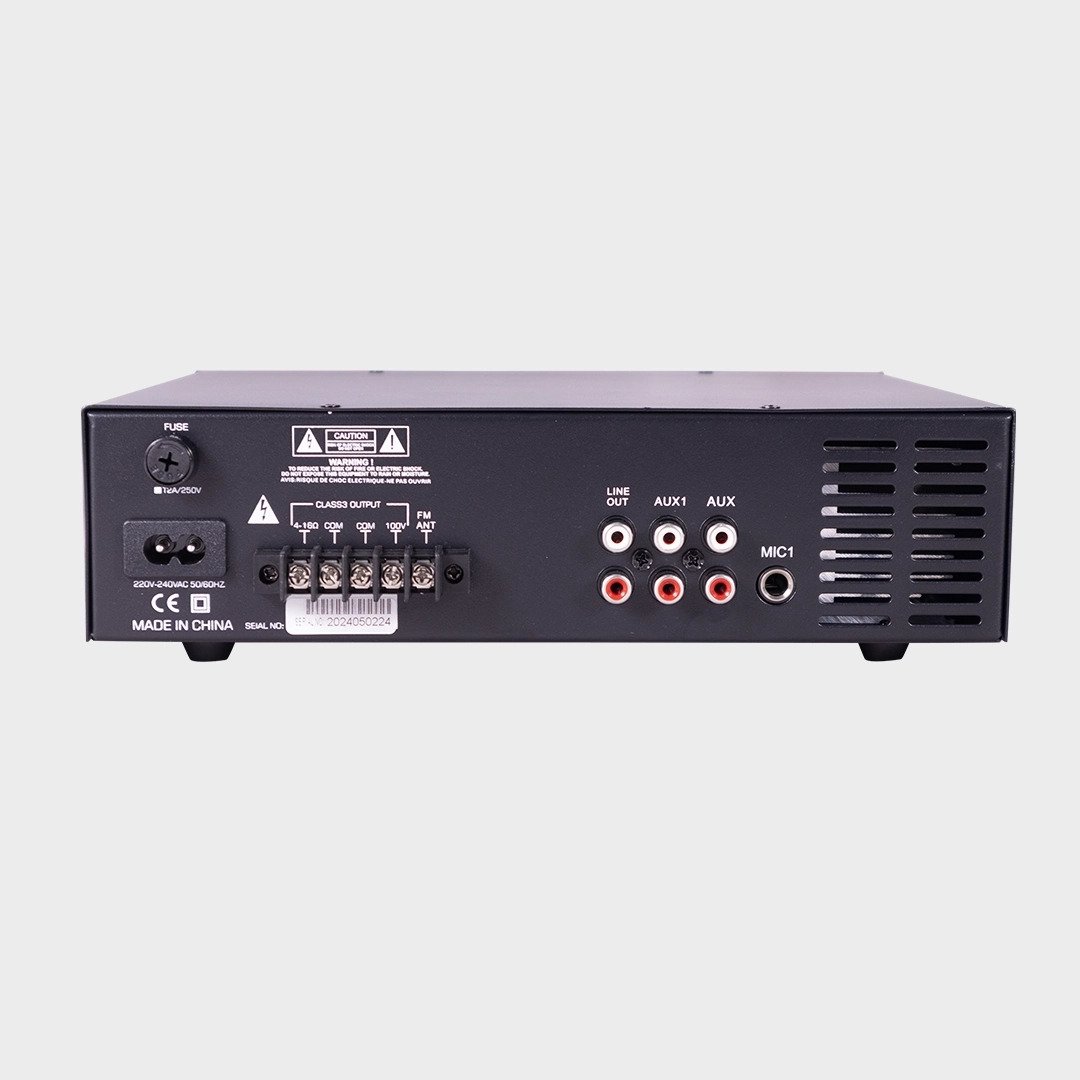

Outputs
- 4Ω ~ 16Ω: Terminal Screw Type
- 70V / 100V: Terminal Screw Type
- Monitor Out: RCA
Controls & Protection
- Tone Control: Bass, Treble (Yes)
- Efficiency: > 85%
- Protection: DC Short Circuit
- Operating Temperature: 0° ~ 40°C @ 95% Humidity
